TRANAX

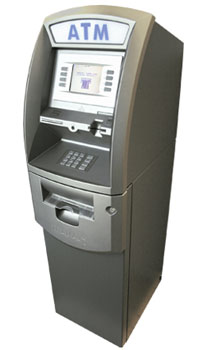

Mini-Bank 1700

Mini-Bank 1700   Tranax introduces the next generation in retail ATMs. The Mini-Bank 1700 raises the bar for quality, engineering and design. Built with the philosophies of durability, reliability and security you’ve come to expect from Tranax, the Mini-Bank 1700 offers the absolute best value in its class. Unsurpassed Value   While targeted for lower transaction volume retail markets, the Mini-Bank 1700 retains all the standard features you expect from a higher end machine including; TDES and ADA compliance, VISA certified encrypting PIN pad (EPP), a voice guidance system, and light action indicators. This machine comes standard with many high quality features including a 5.7 inch Monochrome LCD panel, 56K modem, and an integrated lighted topper. At 206 lbs, the solid construction of the Mini-Bank 1700 (UL291 Listed Business Hour) provides a secure vault while offering the same modular construction for ease of access and maintenance.

Specifications

Dimension and Weight Width: 16 inches Depth: 22 inches Height: 56 inches Weight: 206 pounds Main Control Board ARM 7 - 32-bit processor 32MB RAM (not expandable) Embedded Operating System 56Kb modem Electronic Journal – stores up to 40,000 transactions Power Supply Power switch 110 / 220 volts (manual selection) 60 / 50Hz 125 watts (max) Fuse protection Receipt Printer 2 inch thermal printer Automatic paper loading and cutting Paper out status sensor Cash Dispensing Unit Friction feed mechanism Dispense capacity of 800 notes Top loading cassette Reject bin Double detection sensor Cash dispensing unit is mounted on a sliding panel for easy service Optional 1,700 note removable cassette LCD Display and Function Keys 5.7 inch diagonal Monochrome LCD panel with 320 x 240 resolution Eight function keys for menu selection Displays up to 8 customizable graphics screens which rotate on idle, and while processing Magnetic Card Reader Dip type Reads ISO tracks 1 and 2 Keypad Triple DES compliant Encrypted Pin Pad (EPP) VISA Lab-certified (approval number 10104) Tamper resistant design erases all programming and stored master keys if opened 16 keys with integrated Braille symbols 0 – 9 for numeric entry Left and right arrows for scrolling ENTER, CLEAR, CANCEL and BLANK keys Front Bezel Assembly The front bezel assembly consists of a front bezel, LCD module, key pad module, magnetic card reader module, ADA voice guidance jack, and a locking mechanism The front bezel assembly slides in and out and also hinges forward for maintenance using thumbscrews Top Cabinet The top cabinet houses a main control board, power supply, receipt printer, and a front bezel assembly The main control board, power supply, receipt printer paper, and front bezel assembly are mounted on a sliding tray, which also hinges forward for easy maintenance and service Include an Integrated illuminated topper Vault UL291 business hour certified UL listed combination lock Handle and combination lock are covered by a plastic bezel Four floor mounting holes Reinforced bottom plate Power Requirement 110 /220VAC Manual switch Requires LINE, NEUTRAL, and GROUND Phone Line Requires dedicated phone line RJ-11 phone jack Temperature and Humidity Storage: 32F – 104F, 10% < RH < 90% non-condensing Operating: 40F – 95F, 15% < RH < 85% non-condensing Supported Protocols Standard1 (Tranax Spec) Standard2 (CSP200 emulation) Standard3 (Extended Message Format) EPS Wireless Compatible with most 3rd party wireless devices Order through your processor
